Home — Real Mode
Route: / · Component: components/pages/HomeDashboard.tsx · Data: GET /api/ring/overview (Real Mode) via AppDataProvider

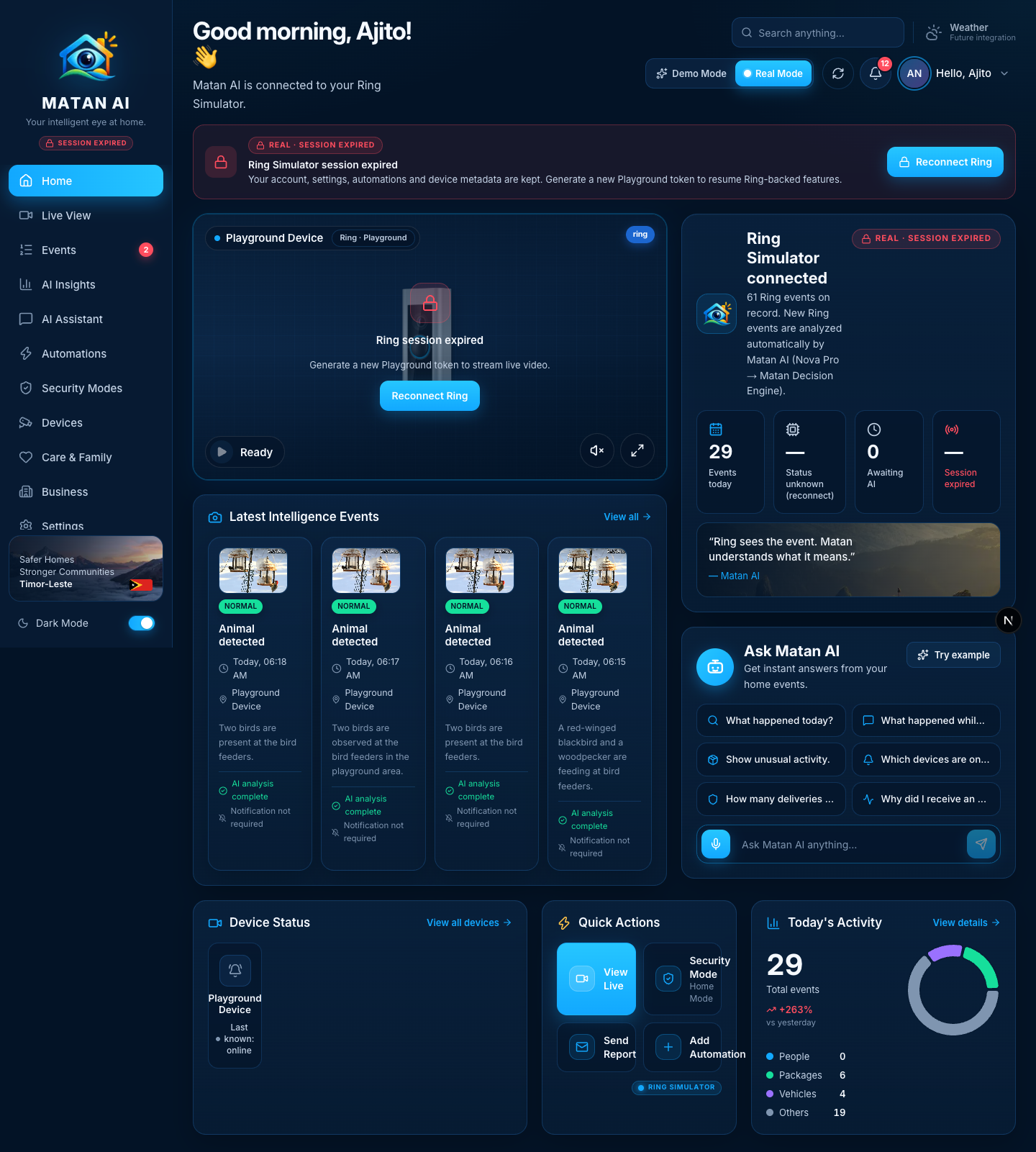

Home is the Real Mode landing page: a live view of the connected Ring device, the latest Matan-analyzed events, today's numbers, quick actions and the Matan AI assistant. Everything shown comes from the signed-in user's Ring Playground data and Matan's own analyses — nothing is sample data in Real Mode. Elements that are not backed by a real integration are labelled Future integration rather than showing placeholder numbers.
How it works
Rendering diagram…AppDataProvider polls the overview every 30 s (6 s while any of the latest events is capturing/analyzing), so new Playground events, their analyses and notification outcomes appear without a manual refresh.
Sections and functions
| Area | What it shows | Source | State |
|---|---|---|---|
| Greeting | "Good morning, first name" from the Cognito profile; subtitle "connected to your Ring Simulator" | Cognito ID token | ✅ real |
| Search | Free text → Search events → /events?search=… | client | ✅ |
| Weather chip (top bar) | "Weather · Future integration" | — | 🔒 future integration (Demo Mode shows sample weather) |
| Demo / Real switch, Refresh, bell, profile | Mode switch (Demo ↔ Real), manual refresh of the overview, notification inbox, account menu (My account / Settings / Sign out) | ExperienceProvider, AppDataProvider, Cognito | ✅ |
| Real Mode banner | Playground status: token countdown (expires in mm:ss), Refresh (re-discovery + history resync), Manage Ring Connection; turns into Session expired → Reconnect Ring when the 30-minute token lapses | /api/ring/session, /api/ring/refresh | ✅ |
| Live view player | Real WebRTC/WHEP stream of the Playground device: Start Ring live view, mute, fullscreen; Ready badge | POST /api/ring/devices/{id}/stream → Ring WHEP | ✅ (needs a live token) |
| Latest Intelligence Events | Four newest Ring events with Nova summary, priority badge, AI status line ("AI analysis complete"), notification line ("Notification sent via …" / "not required"), New badge for events that arrived since the page loaded; click → event page | latestEvents (Ring history + Matan analyses) | ✅ |
| Ring Simulator connected card | Total Ring events on record (all history), explanation of automatic analysis; tiles Events today, Devices online (becomes Status unknown (reconnect) once the token expires, because Ring status cannot be re-checked without it), Awaiting AI, Session left | historyCount, todayCounts, devices, session | ✅ |
| Ask Matan AI | Six quick questions + free-text input; answers are computed from the user's real Ring events (answerRing); Try example | POST /api/assistant?mode=ring | ✅ · 🎤 Voice input → future integration (toast) |
| Device Status | Connected Ring devices with online/offline dot (Last known: online while the session is expired); View all devices | /api/ring/devices | ✅ |
| Quick Actions | View Live → /live · Security Mode → /security-modes (shows the active Matan mode) · Send Report · Add Automation → /automations?create=1 | see below | ✅ |
| Today's Activity | Total events today, % vs yesterday, donut by type (people / packages / vehicles / others); View details → /insights | todayCounts from Ring history | ✅ |

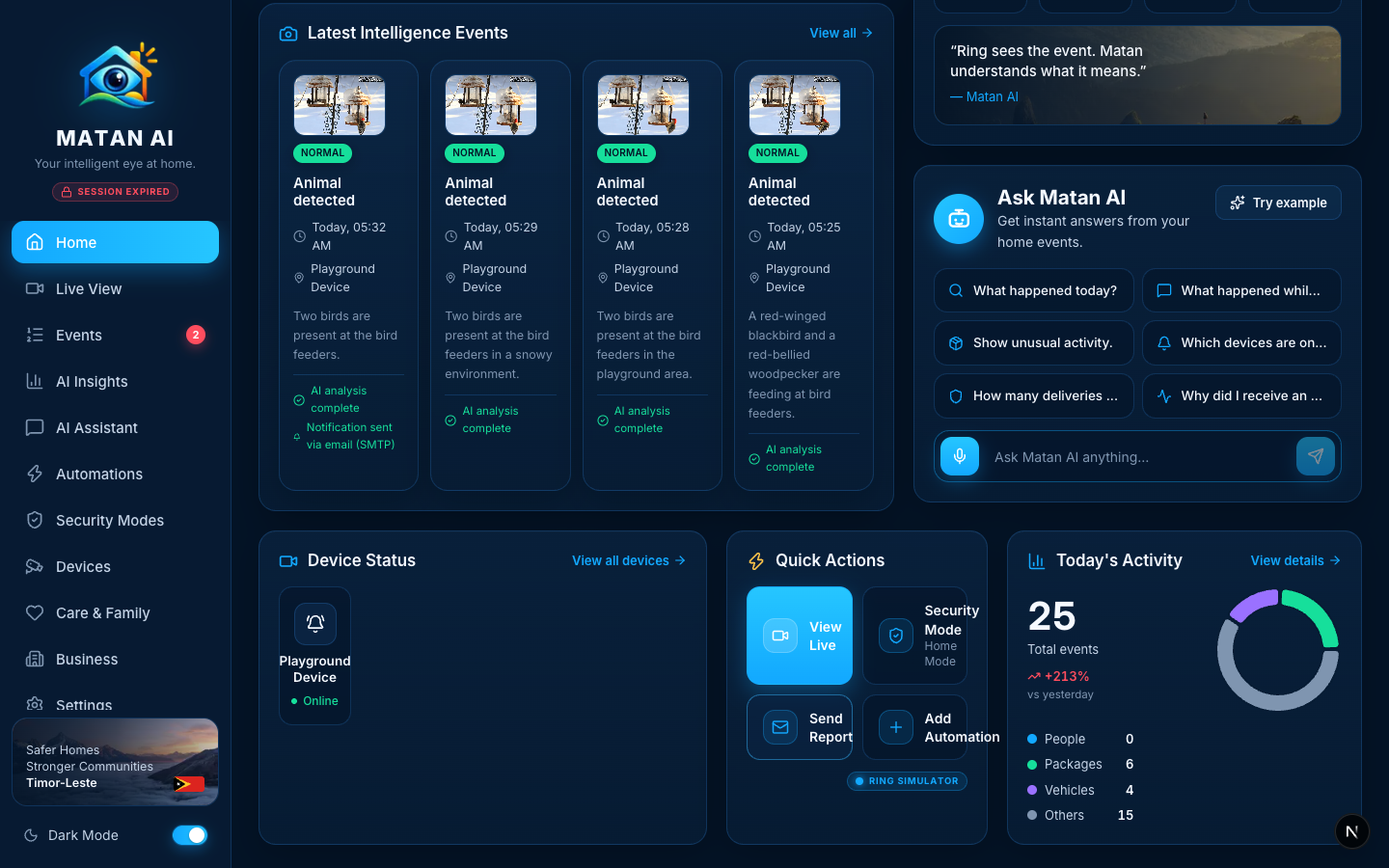

Send Report (real)

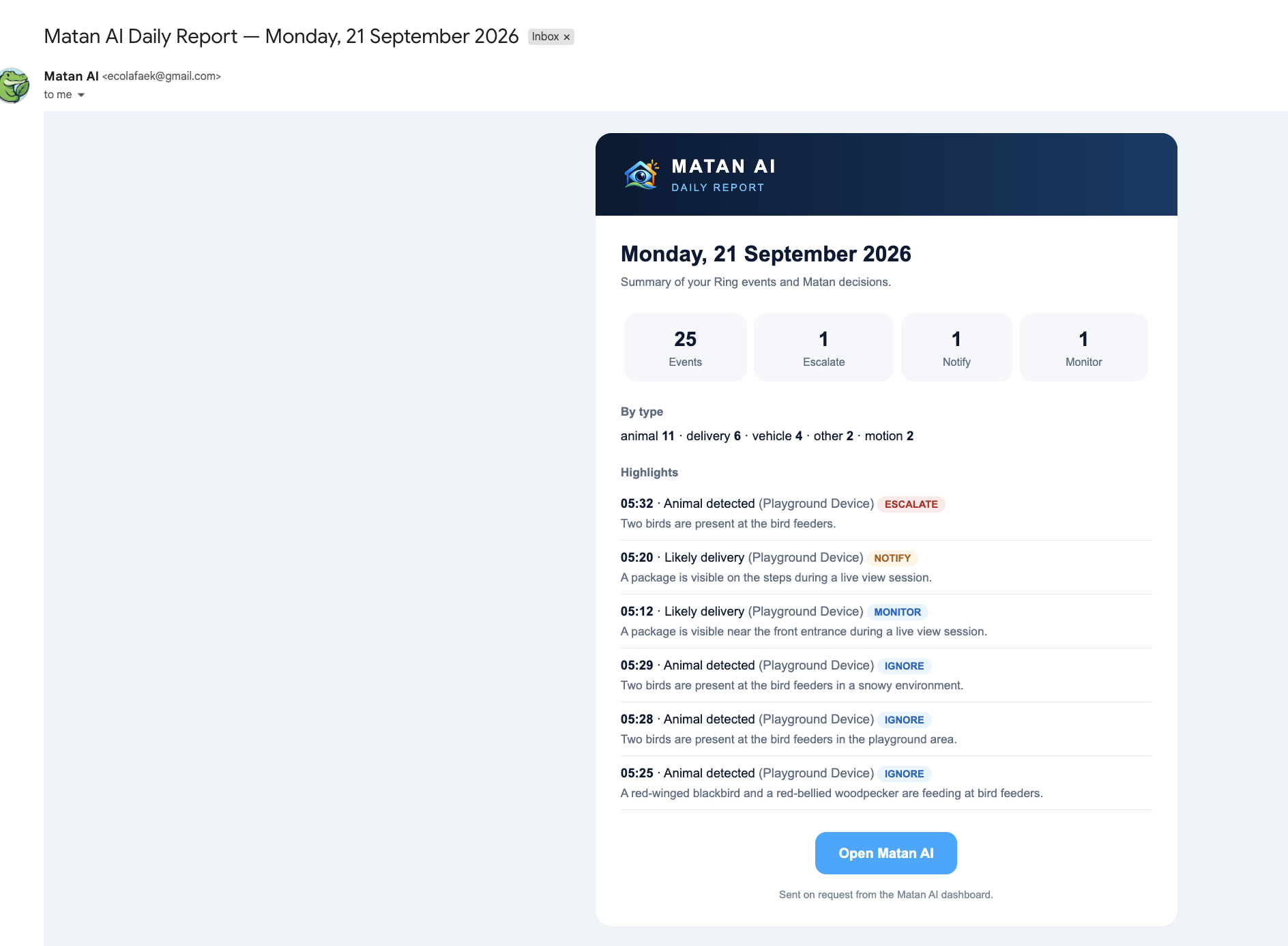

POST /api/matan/report builds today's summary from the user's real Ring events in the care-context timezone — totals by type, Matan decision counts (Escalate / Notify / Monitor / Ignore) and up to six highlights — and emails it to the address in Settings → Notifications through the same SES → SMTP transport as alerts. One report per 10 minutes per user (NOTIFICATION#REPORT-<bucket>#EMAIL); the toast reports sent (via …), already sent, not sent: set an alert address, or the failure code. In Demo Mode the button only simulates and says so.
Notifications bell (real)
The inbox is derived from Matan's own decisions on real events: every NOTIFY / ESCALATE decision and every email actually sent becomes an item (title, reason, time, link to the event). Read state is kept per user (POST /api/ring/notifications); the empty state explains what will appear. Demo Mode keeps its sample notifications.
Sidebar badge
The red counter on Events is the number of today's Ring events rated attention or important by the Decision Engine.
Future integrations shown on this page
- Weather — no weather provider is connected; the chip says so instead of showing demo values.
- Voice input — microphone button explains it is a future integration; typing works.
Changes made during the Real Mode audit
- Weather chip and voice input labelled as future integrations in Real Mode.
- "N Ring events on record" now uses the full history count instead of the 4-item preview list.
- Send Report replaced its fake success toast with a real daily-summary email (rate-limited, real data only; Demo Mode clearly simulated).
- Notification bell in Real Mode now lists real Matan decisions/emails with read state and an empty state (was an empty list).
Verified
- 2026-09-21, signed-in Real Mode session: page rendered from real Playground data (1 device online, 25 events today, 4 analyzed events with notification lines), Send Report → email sent, second click →
429duplicate guard, token expiry → Session expired banner.
